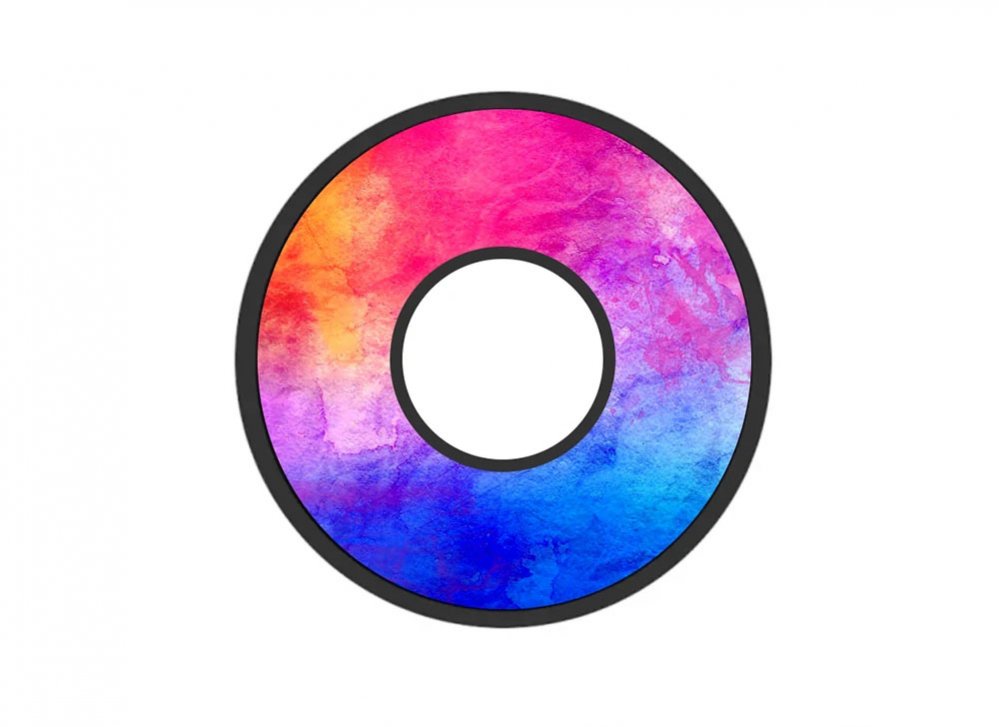

Round LED Display-1

Round LED Display

A Round LED display (also called circled led display) is made by special designed flexible LED modules and a circled metal frame, it’s one of the most creative products for indoor advertising. Widely used for Science and Technology Museum, Creative Experience Museum, Exhibition, Advertising and Multimedia Center.
Product Description


Golden Ratio Design as 16:9

Cabinet size is designed as 16:9, easy to achieve full HD and 4K, no compression.



Thin and Light Design

Only with 6.5kg per cabinet, and 62mm thickness, more convenient to be installed and shipped.



Aluminum material case

Innovation aluminum material case design, seamless splitting, and better heat dissipation capability.



Full Front Access Design

Full front access and front and back installations design,  no limitation for the installing surrounding.



Cable Free Design for Cabinet Connection

Adopting touch links for power and signal,cable free among the cabinet connection, more efficient and elegant.



Dual Signal & Power Supply Standby

Ensure 7*24 hours uninterrupted working,unnecessary to face the emergence.



High Gray Level and Refresh Frequency

Adopting low brightness with high gray level and refresh frequency, making the display effect more bright and vivid, meeting various high-end application sites.



Parameters



No. E0.9 E1.2 E1.5 E1.9
Module Pixel Pitch(mm) 0.95 1.27 1.58 1.9
Module Size(mm) 305x171.5 305x171.5 305x171.5 305x171.5
Module Resolution(point) 320x180 240x135 192x108 160x90
LED Type SMD0606 SMD1010 SMD1010 SMD1515
Cabinet Cabinet Size(mm) 610x343x62 610x343x62 610x343x62 610x343x62
Cabinet Display Resolution(point) 640x360 480x270 384x216 320x180
Material Die-casting Al Die-casting Al Die-casting Al Die-casting Al
Cabinet Weight(Kg) ≤6.5 ≤6.5 ≤6.5 ≤6.5
Display Pixel Density 1100779 pix/㎡ 622722 pix/㎡ 398556 pix/㎡ 276765 pix/㎡
Brightness ≥800cd/㎡ ≥800cd/㎡ ≥800cd/㎡ ≥800cd/㎡
Refresh Rate(Hz) 1920-3840 1920-3840 1920-3840 1920-3840
Color Depth 14bit 14bit 14bit 14bit
Avg. Power Consumption 260 W/㎡ 250 W/㎡ 220 W/㎡ 250 W/㎡
Max. Power Consumption 620 W/㎡ 600 W/㎡ 550 W/㎡ 600 W/㎡
Viewing Angle H:160°V:120° H:160°V:120° H:160°V:120° H:160°V:120°
IP Grade IP30 IP30 IP30 IP30
Service Access Full front access Full front access Full front access Full front access
Operating Temp/Humidity -20℃~50℃, 10~90%RH
Storage Temp/Humidity -40℃~60℃, 10~90%RH
Input Signal DVI HDMI SDI VGA
Certification CCC CE ETL



Previous
Next

Key Features

Module Specs

There’re several types of modules for our round led display,320*160, 240*120, 80*80, 60*60.

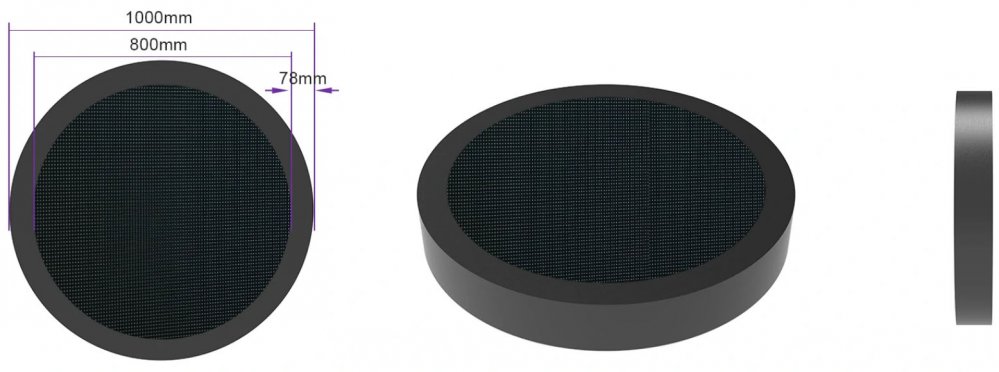

Cabinet Specs

There’re several diameters: 1m,1.5m and 2m, with Pixel pitch P1.875 P1.538 and P2

Easy install Structure

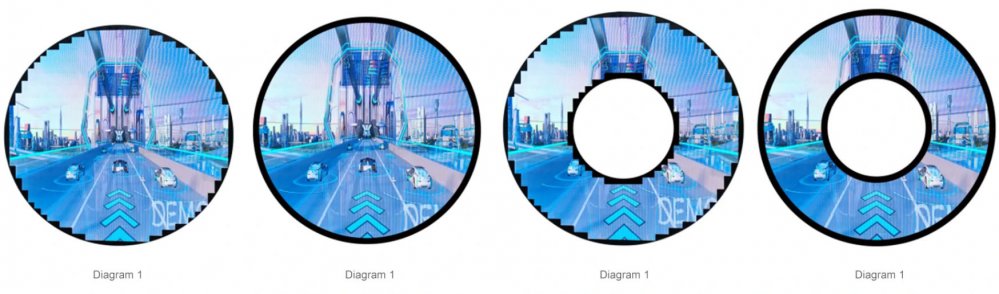

The design and structure of roundLED display can be customized. It is assembled by some pre customized LED modules according to the characteristic round structure.

Various installation mode

It can be ceiling roof mount,wall mount or mounted on a special structure.

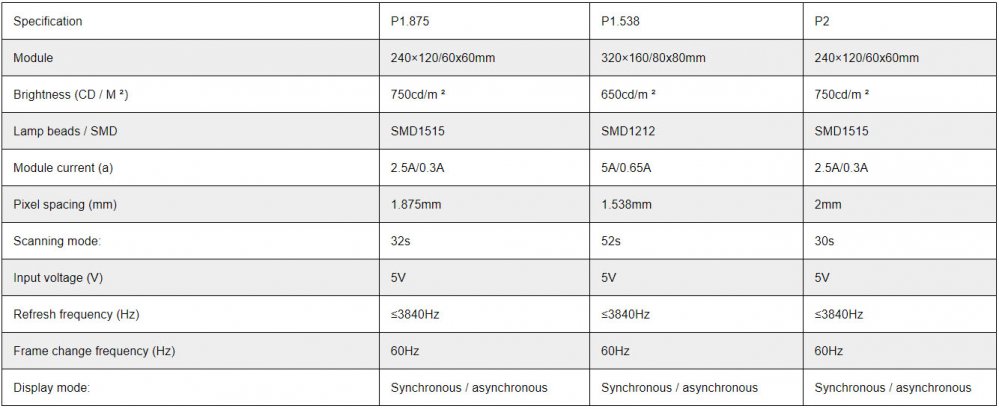

Specifications

Application

Due to the difference between round LED display and conventional large LED screen, more and more creative application scenarios have strong interest and demand for round LED display.For example, the following are common application scenarios.

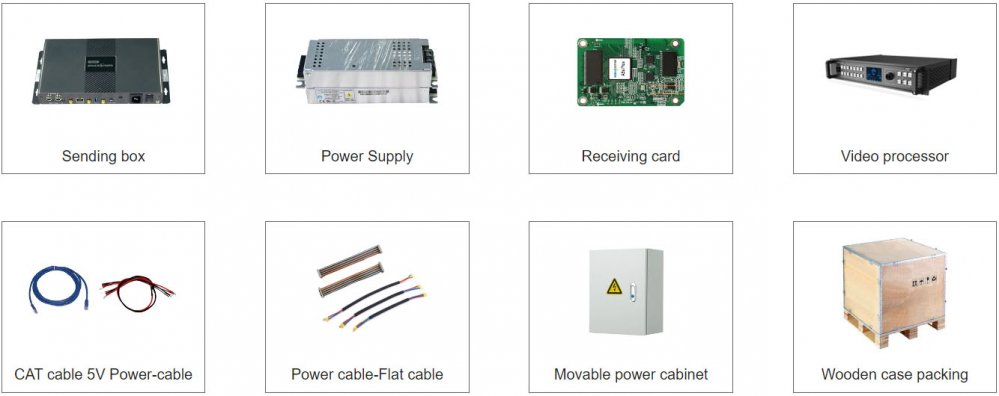

Standard Accessories

After-sale Service & Support

Applications

P6.67 outdoor full color led di

50 sqn P3.91 outdoor in concert

45 sqm P3.91 outdoor in Guatema
