Car Top LED Display-1

Car Top LED Display V2.0

taxi top sign is for outdoor solution with slim and beautiful aluminum and pc case.Base on the car power system and wind resistance,it will not damage the car or block the wind in heavy condition.With high brightness but low power comsumption,it will be useful for bring more ads .The structure is easy to maintain and fast to check any problem.It will be with 2-4 years warrenty according to the car request.
Product Description


Golden Ratio Design as 16:9

Cabinet size is designed as 16:9, easy to achieve full HD and 4K, no compression.



Thin and Light Design

Only with 6.5kg per cabinet, and 62mm thickness, more convenient to be installed and shipped.



Aluminum material case

Innovation aluminum material case design, seamless splitting, and better heat dissipation capability.



Full Front Access Design

Full front access and front and back installations design,  no limitation for the installing surrounding.



Cable Free Design for Cabinet Connection

Adopting touch links for power and signal,cable free among the cabinet connection, more efficient and elegant.



Dual Signal & Power Supply Standby

Ensure 7*24 hours uninterrupted working,unnecessary to face the emergence.



High Gray Level and Refresh Frequency

Adopting low brightness with high gray level and refresh frequency, making the display effect more bright and vivid, meeting various high-end application sites.



Parameters



No. E0.9 E1.2 E1.5 E1.9
Module Pixel Pitch(mm) 0.95 1.27 1.58 1.9
Module Size(mm) 305x171.5 305x171.5 305x171.5 305x171.5
Module Resolution(point) 320x180 240x135 192x108 160x90
LED Type SMD0606 SMD1010 SMD1010 SMD1515
Cabinet Cabinet Size(mm) 610x343x62 610x343x62 610x343x62 610x343x62
Cabinet Display Resolution(point) 640x360 480x270 384x216 320x180
Material Die-casting Al Die-casting Al Die-casting Al Die-casting Al
Cabinet Weight（Kg） ≤6.5 ≤6.5 ≤6.5 ≤6.5
Display Pixel Density 1100779 pix/㎡ 622722 pix/㎡ 398556 pix/㎡ 276765 pix/㎡
Brightness ≥800cd/㎡ ≥800cd/㎡ ≥800cd/㎡ ≥800cd/㎡
Refresh Rate(Hz) 1920-3840 1920-3840 1920-3840 1920-3840
Color Depth 14bit 14bit 14bit 14bit
Avg. Power Consumption 260 W/㎡ 250 W/㎡ 220 W/㎡ 250 W/㎡
Max. Power Consumption 620 W/㎡ 600 W/㎡ 550 W/㎡ 600 W/㎡
Viewing Angle H:160°V:120° H:160°V:120° H:160°V:120° H:160°V:120°
IP Grade IP30 IP30 IP30 IP30
Service Access Full front access Full front access Full front access Full front access
Operating Temp/Humidity -20℃～50℃, 10～90%RH
Storage Temp/Humidity -40℃～60℃, 10～90%RH
Input Signal DVI HDMI SDI VGA
Certification CCC CE ETL



Previous
None
Next
None

Key Features

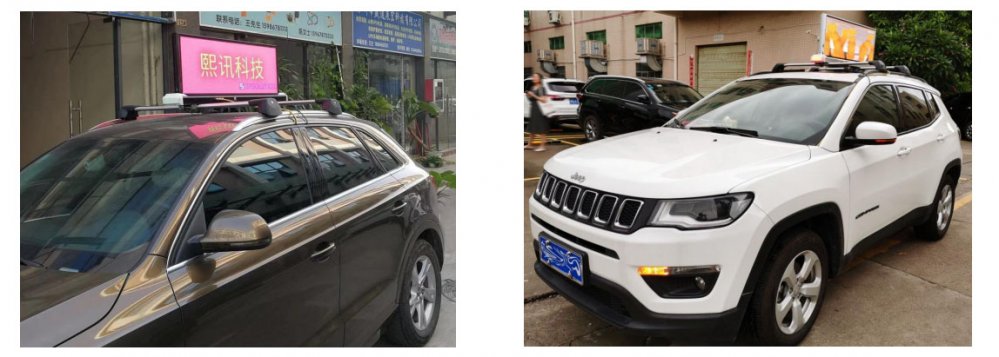

Sign installation

Bracket installation

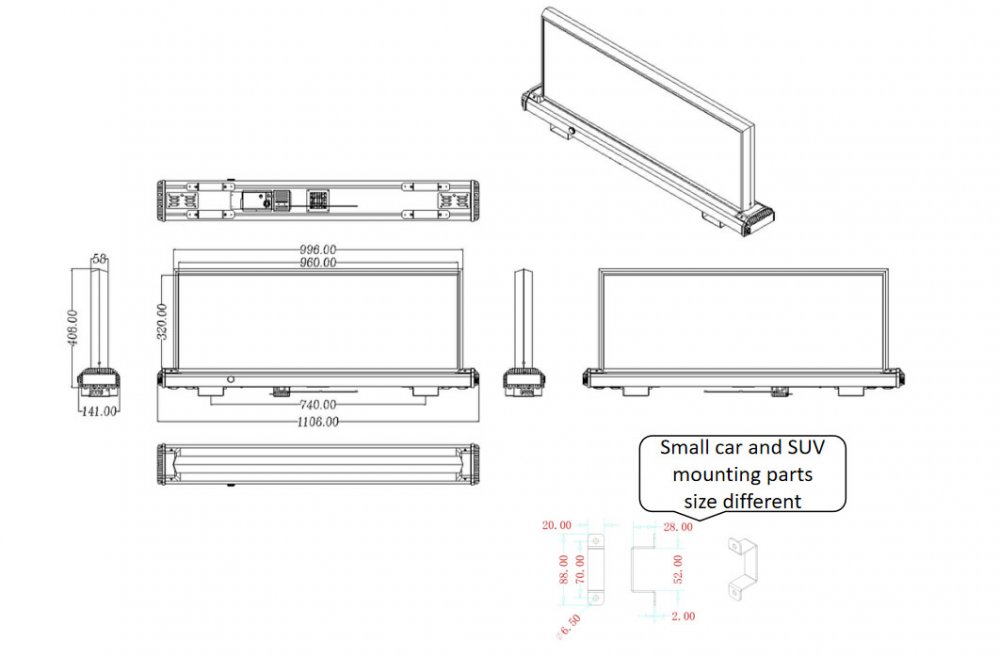

Sign size
