HS Series – HD LED Display

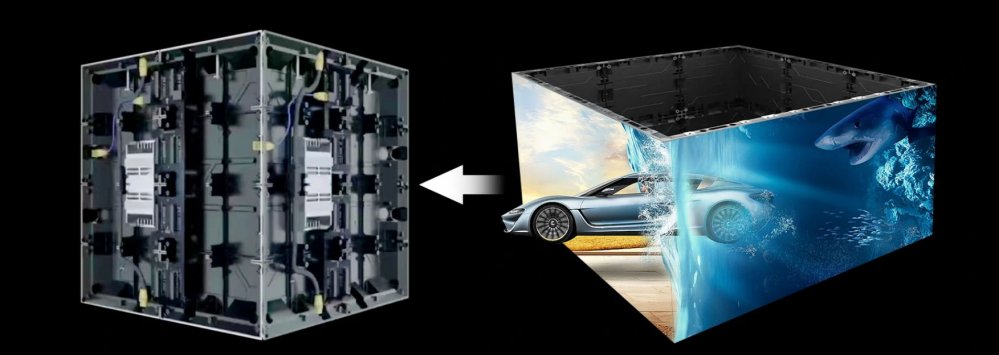

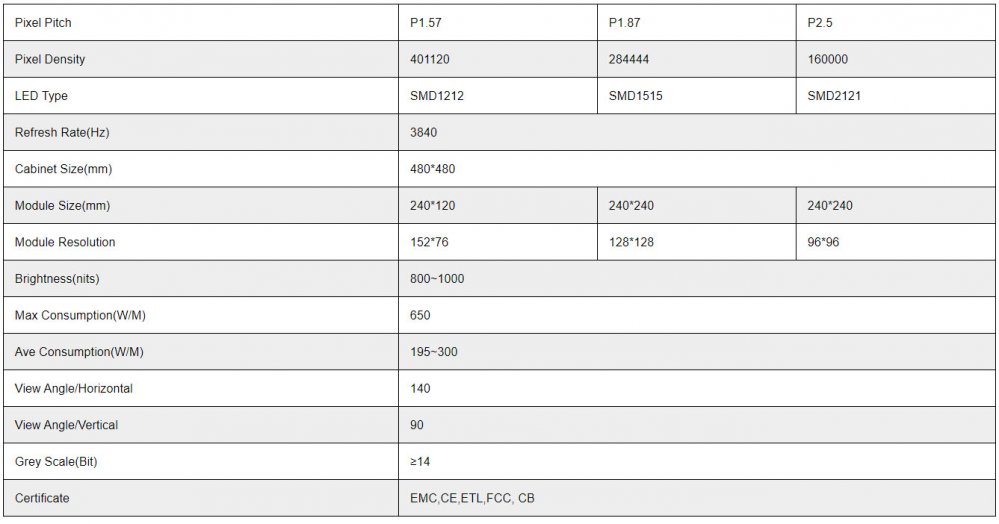

The HS series is a hub board designed cabinet with size 480 * 480, which supports front maintenance, key features support power backup, system backup, flash storage and EMC. About the installation, it support front maintenance, fixed installation and ceiling installation and also right corner combination. About the compatibility, it compatible with P1.57 1.87 P2.5 pixel pitch.

Product Description

Golden Ratio Design as 16:9

Cabinet size is designed as 16:9, easy to achieve full HD and 4K, no compression.

Thin and Light Design

Only with 6.5kg per cabinet, and 62mm thickness, more convenient to be installed and shipped.

Aluminum material case

Innovation aluminum material case design, seamless splitting, and better heat dissipation capability.

Full Front Access Design

Full front access and front and back installations design, no limitation for the installing surrounding.

Cable Free Design for Cabinet Connection

Adopting touch links for power and signal,cable free among the cabinet connection, more efficient and elegant.

Dual Signal & Power Supply Standby

Ensure 7*24 hours uninterrupted working,unnecessary to face the emergence.

High Gray Level and Refresh Frequency

Adopting low brightness with high gray level and refresh frequency, making the display effect more bright and vivid, meeting various high-end application sites.

Parameters

No.		E0.9	E1.2	E1.5	E1.9
Module	Pixel Pitch(mm)	0.95	1.27	1.58	1.9
	Module Size(mm)	305x171.5	305x171.5	305x171.5	305x171.5
	Module Resolution(point)	320x180	240x135	192x108	160x90
	LED Type	SMD0606	SMD1010	SMD1010	SMD1515
Cabinet	Cabinet Size(mm)	610x343x62	610x343x62	610x343x62	610x343x62
	Cabinet Display Resolution(point)	640x360	480x270	384x216	320x180
	Material	Die-casting Al	Die-casting Al	Die-casting Al	Die-casting Al
	Cabinet Weight（Kg）	≤6.5	≤6.5	≤6.5	≤6.5
Display	Pixel Density	1100779 pix/㎡	622722 pix/㎡	398556 pix/㎡	276765 pix/㎡
	Brightness	≥800cd/㎡	≥800cd/㎡	≥800cd/㎡	≥800cd/㎡
	Refresh Rate(Hz)	1920-3840	1920-3840	1920-3840	1920-3840
	Color Depth	14bit	14bit	14bit	14bit
	Avg. Power Consumption	260 W/㎡	250 W/㎡	220 W/㎡	250 W/㎡
	Max. Power Consumption	620 W/㎡	600 W/㎡	550 W/㎡	600 W/㎡
	Viewing Angle	H:160°V:120°	H:160°V:120°	H:160°V:120°	H:160°V:120°
	IP Grade	IP30	IP30	IP30	IP30
	Service Access	Full front access	Full front access	Full front access	Full front access
	Operating Temp/Humidity	-20℃～50℃, 10～90%RH
	Storage Temp/Humidity	-40℃～60℃, 10～90%RH
	Input Signal	DVI HDMI SDI VGA
	Certification	CCC CE ETL

None

Key Features

Cabinet Specs First class design for die casting cabinet frame, each cabinet (include all components) is only 7 kg , four sets strong fast lock to make assembling to be easier.

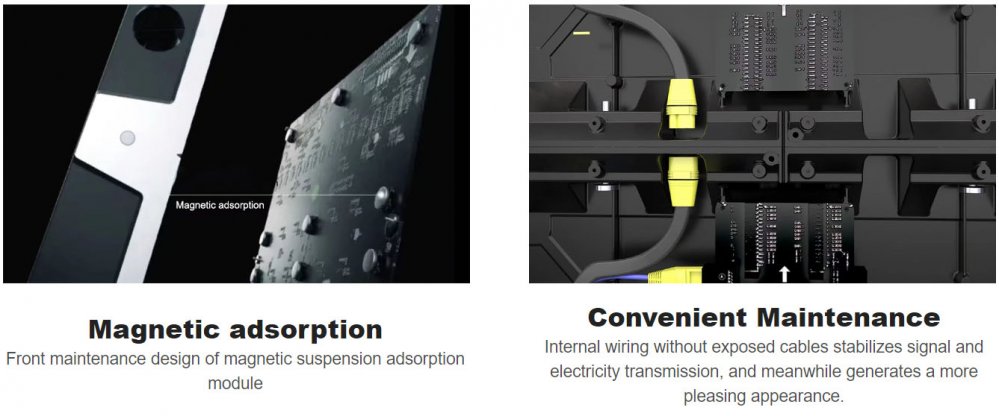

Friendly Maintenance The cabinet adopt cable-less design and HUB board design(integrated power board and receiving card) which can be maintenence in seconds, magnetic modules with front and rear maintenance

Creative combination Allows to make curve video wall Inner outer arcs 15°,0°,-15° adjustable,right angle combination and other creative combinations

Various installation mode The thinner and lighter high-precision cabinet and interlocking function enable the installer to complete the installation very quickly and efficiently, such as direct wall mounting, hanging and stacking arc installation, thus saving time, energy and personnel costs.
