RS-1

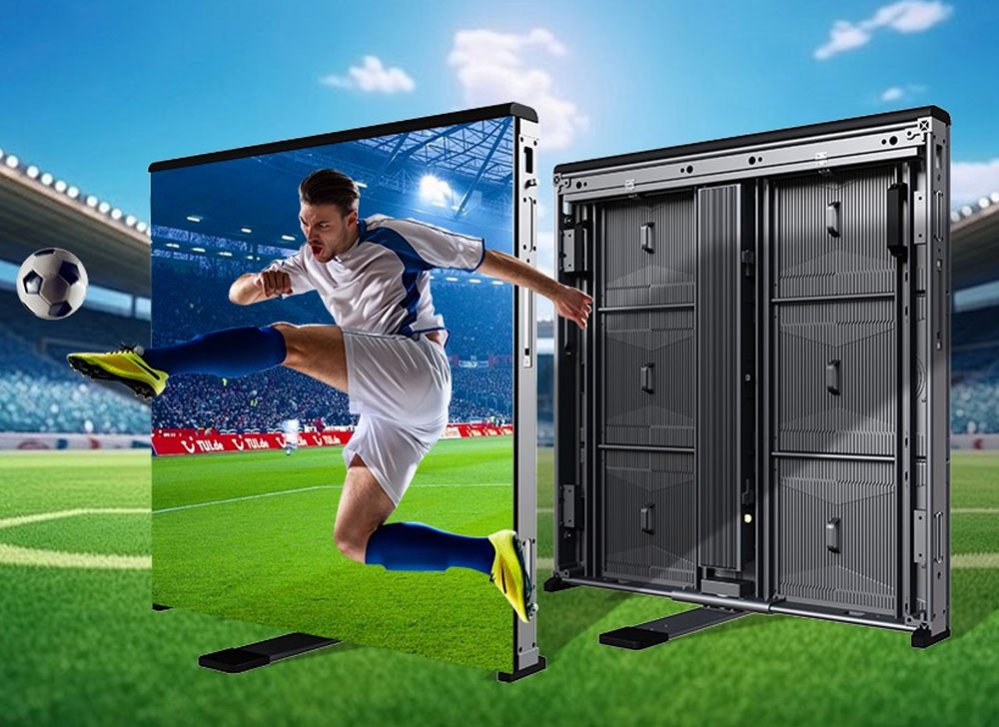

RS Magic series Sports LED Display

Full die-casting Aluminum module, Aluminum cabinet for the sport screen. flame retrardant and fireproof. waterproof IP 66. It is available for the P6.67 P8 P8 P10. cabinet size 960x960mm
Product Description


Golden Ratio Design as 16:9

Cabinet size is designed as 16:9, easy to achieve full HD and 4K, no compression.



Thin and Light Design

Only with 6.5kg per cabinet, and 62mm thickness, more convenient to be installed and shipped.



Aluminum material case

Innovation aluminum material case design, seamless splitting, and better heat dissipation capability.



Full Front Access Design

Full front access and front and back installations design,  no limitation for the installing surrounding.



Cable Free Design for Cabinet Connection

Adopting touch links for power and signal,cable free among the cabinet connection, more efficient and elegant.



Dual Signal & Power Supply Standby

Ensure 7*24 hours uninterrupted working,unnecessary to face the emergence.



High Gray Level and Refresh Frequency

Adopting low brightness with high gray level and refresh frequency, making the display effect more bright and vivid, meeting various high-end application sites.



Parameters



No. E0.9 E1.2 E1.5 E1.9
Module Pixel Pitch(mm) 0.95 1.27 1.58 1.9
Module Size(mm) 305x171.5 305x171.5 305x171.5 305x171.5
Module Resolution(point) 320x180 240x135 192x108 160x90
LED Type SMD0606 SMD1010 SMD1010 SMD1515
Cabinet Cabinet Size(mm) 610x343x62 610x343x62 610x343x62 610x343x62
Cabinet Display Resolution(point) 640x360 480x270 384x216 320x180
Material Die-casting Al Die-casting Al Die-casting Al Die-casting Al
Cabinet Weight（Kg） ≤6.5 ≤6.5 ≤6.5 ≤6.5
Display Pixel Density 1100779 pix/㎡ 622722 pix/㎡ 398556 pix/㎡ 276765 pix/㎡
Brightness ≥800cd/㎡ ≥800cd/㎡ ≥800cd/㎡ ≥800cd/㎡
Refresh Rate(Hz) 1920-3840 1920-3840 1920-3840 1920-3840
Color Depth 14bit 14bit 14bit 14bit
Avg. Power Consumption 260 W/㎡ 250 W/㎡ 220 W/㎡ 250 W/㎡
Max. Power Consumption 620 W/㎡ 600 W/㎡ 550 W/㎡ 600 W/㎡
Viewing Angle H:160°V:120° H:160°V:120° H:160°V:120° H:160°V:120°
IP Grade IP30 IP30 IP30 IP30
Service Access Full front access Full front access Full front access Full front access
Operating Temp/Humidity -20℃～50℃, 10～90%RH
Storage Temp/Humidity -40℃～60℃, 10～90%RH
Input Signal DVI HDMI SDI VGA
Certification CCC CE ETL



Previous
None
Next
None

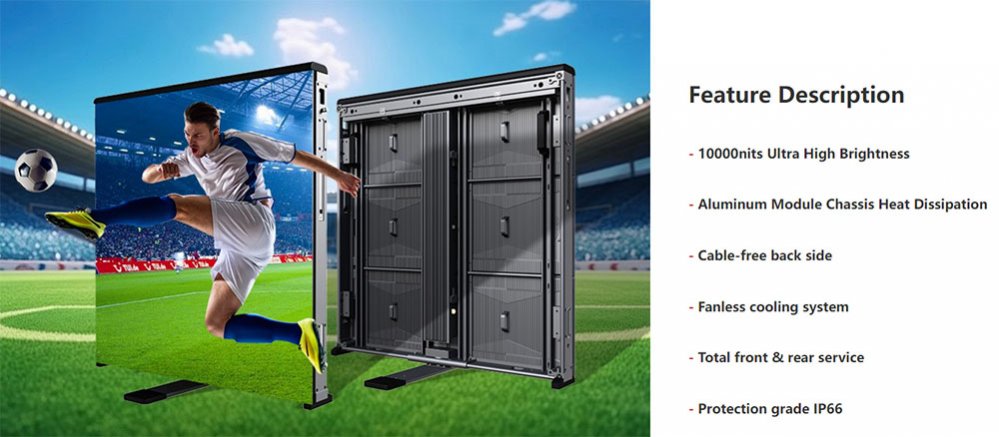

Features

Advantages

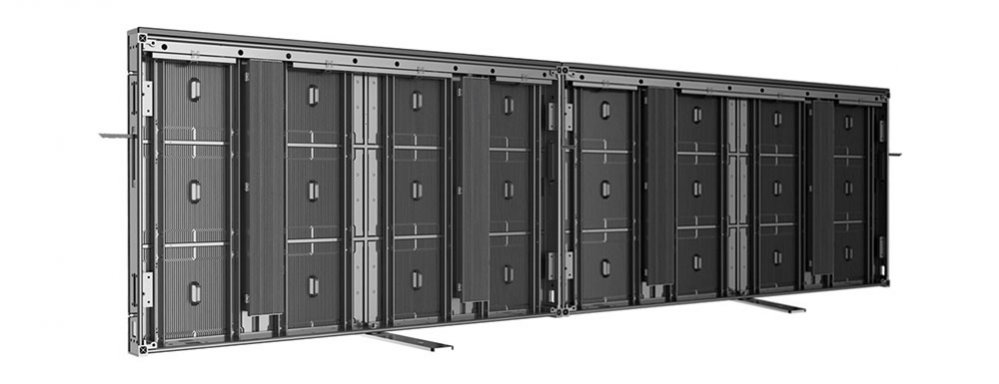

Excellent Cabinet Design

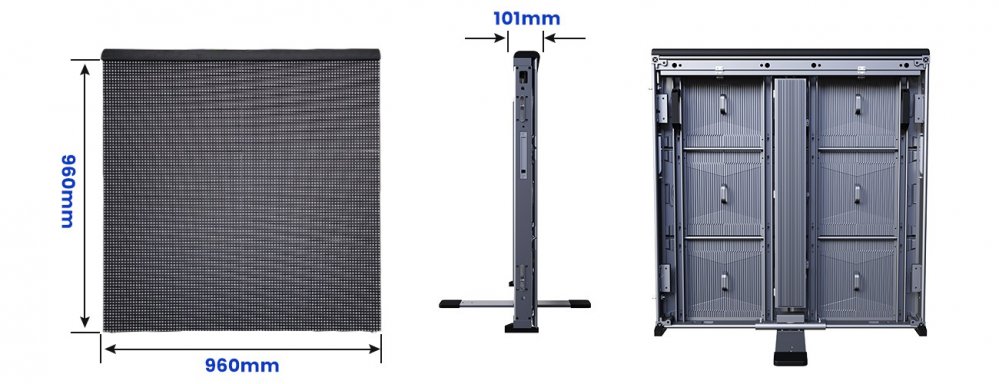

Full die-casting Aluminum module and cabinet frame not only accelerate heat dissipation;also own light weight 34.8KG/SQM;Cabinet size 960x960x101mm

Foot stand and top safer bumper

90-degree upright support frame, soft mask protection, high-protection chassis panel design

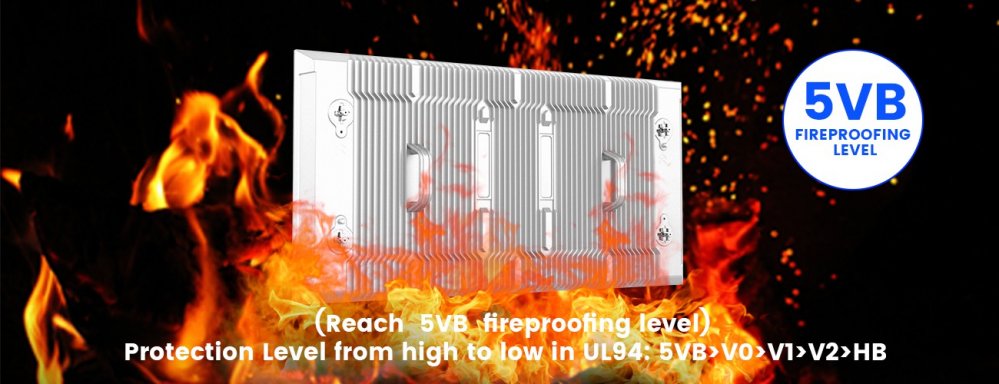

5VB aluminum module

Die cast aluminum modules are safer! Energy saving! Stable!Can get the TUV of 5VB fire protection certification.

Installation

Front and rear maintenance

90 Degrees Upright

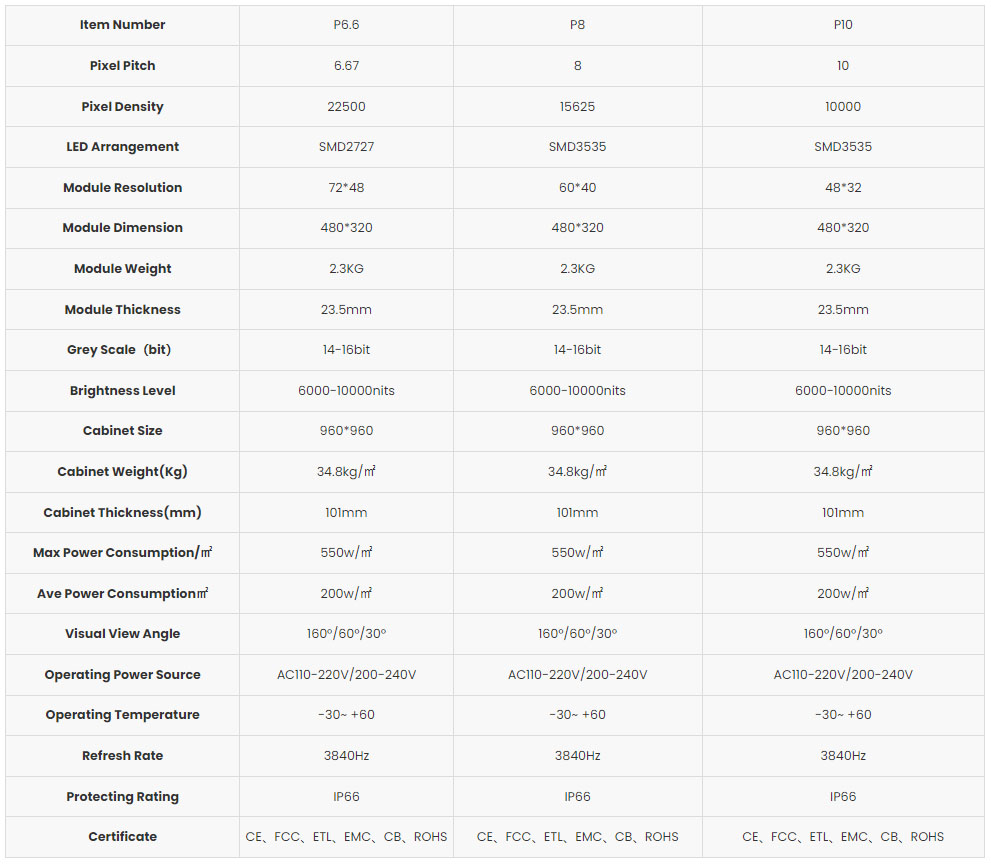

Specifications

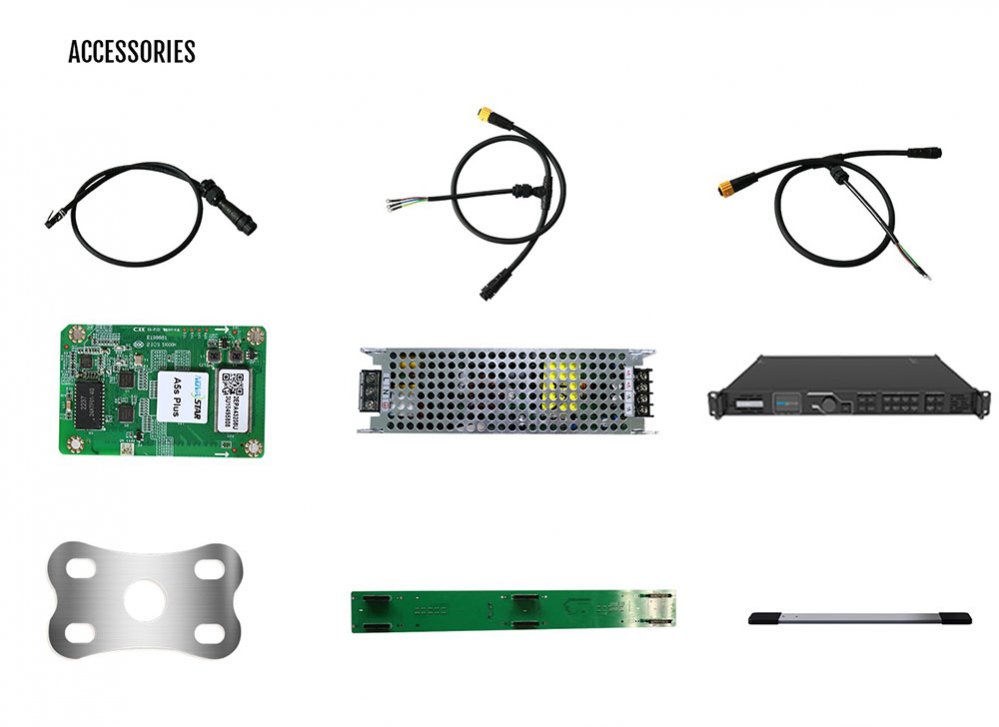

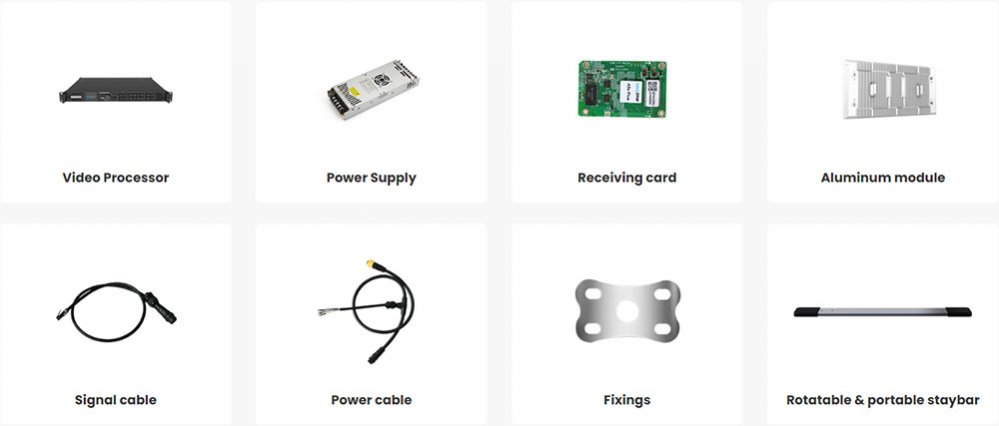

Accessories

Applications
P6.67 outdoor full color led di
P6.67 outdoor full color led di

P6.67 outdoor full color led di

50 sqn P3.91 outdoor in concert
50 sqn P3.91 outdoor in concert

50 sqn P3.91 outdoor in concert

45 sqm P3.91 outdoor in Guatema
45 sqm P3.91 outdoor in Guatema

45 sqm P3.91 outdoor in Guatema
