TS Serial – Indoor LED Display

TS series cabinet size 1000mm x 1000mm or 1000mm x 500mm , ultra-light designing, super high transparency –– Based on the Horizontal arrangement lighting technology, it is up to 65%transparency– Cabinet size is customized according to application ,match with the building glass perfectly– Support front and rear maintenance,easy to maintain and low cost maintenance– Low power consumption

Product Description

Golden Ratio Design as 16:9

Cabinet size is designed as 16:9, easy to achieve full HD and 4K, no compression.

Thin and Light Design

Only with 6.5kg per cabinet, and 62mm thickness, more convenient to be installed and shipped.

Aluminum material case

Innovation aluminum material case design, seamless splitting, and better heat dissipation capability.

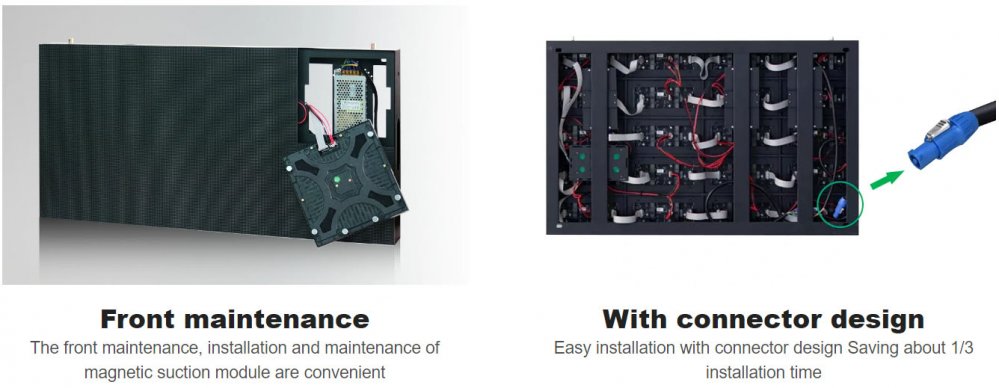

Full Front Access Design

Full front access and front and back installations design, no limitation for the installing surrounding.

Cable Free Design for Cabinet Connection

Adopting touch links for power and signal,cable free among the cabinet connection, more efficient and elegant.

Dual Signal & Power Supply Standby

Ensure 7*24 hours uninterrupted working,unnecessary to face the emergence.

High Gray Level and Refresh Frequency

Adopting low brightness with high gray level and refresh frequency, making the display effect more bright and vivid, meeting various high-end application sites.

Parameters

No.		E0.9	E1.2	E1.5	E1.9
Module	Pixel Pitch(mm)	0.95	1.27	1.58	1.9
	Module Size(mm)	305x171.5	305x171.5	305x171.5	305x171.5
	Module Resolution(point)	320x180	240x135	192x108	160x90
	LED Type	SMD0606	SMD1010	SMD1010	SMD1515
Cabinet	Cabinet Size(mm)	610x343x62	610x343x62	610x343x62	610x343x62
	Cabinet Display Resolution(point)	640x360	480x270	384x216	320x180
	Material	Die-casting Al	Die-casting Al	Die-casting Al	Die-casting Al
	Cabinet Weight（Kg）	≤6.5	≤6.5	≤6.5	≤6.5
Display	Pixel Density	1100779 pix/㎡	622722 pix/㎡	398556 pix/㎡	276765 pix/㎡
	Brightness	≥800cd/㎡	≥800cd/㎡	≥800cd/㎡	≥800cd/㎡
	Refresh Rate(Hz)	1920-3840	1920-3840	1920-3840	1920-3840
	Color Depth	14bit	14bit	14bit	14bit
	Avg. Power Consumption	260 W/㎡	250 W/㎡	220 W/㎡	250 W/㎡
	Max. Power Consumption	620 W/㎡	600 W/㎡	550 W/㎡	600 W/㎡
	Viewing Angle	H:160°V:120°	H:160°V:120°	H:160°V:120°	H:160°V:120°
	IP Grade	IP30	IP30	IP30	IP30
	Service Access	Full front access	Full front access	Full front access	Full front access
	Operating Temp/Humidity	-20℃～50℃, 10～90%RH
	Storage Temp/Humidity	-40℃～60℃, 10～90%RH
	Input Signal	DVI HDMI SDI VGA
	Certification	CCC CE ETL

None

Key Features

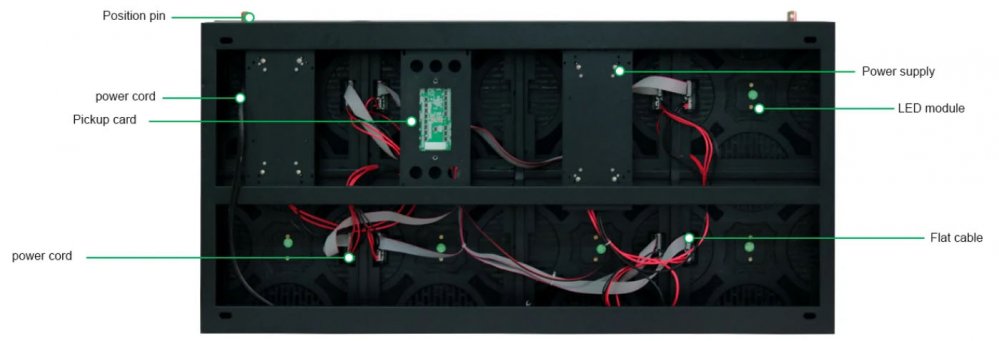

High Quality Frame First class design for iron cabinet, each cabinet (include all components) has four sets strong fast lock to make assembling to be easier.

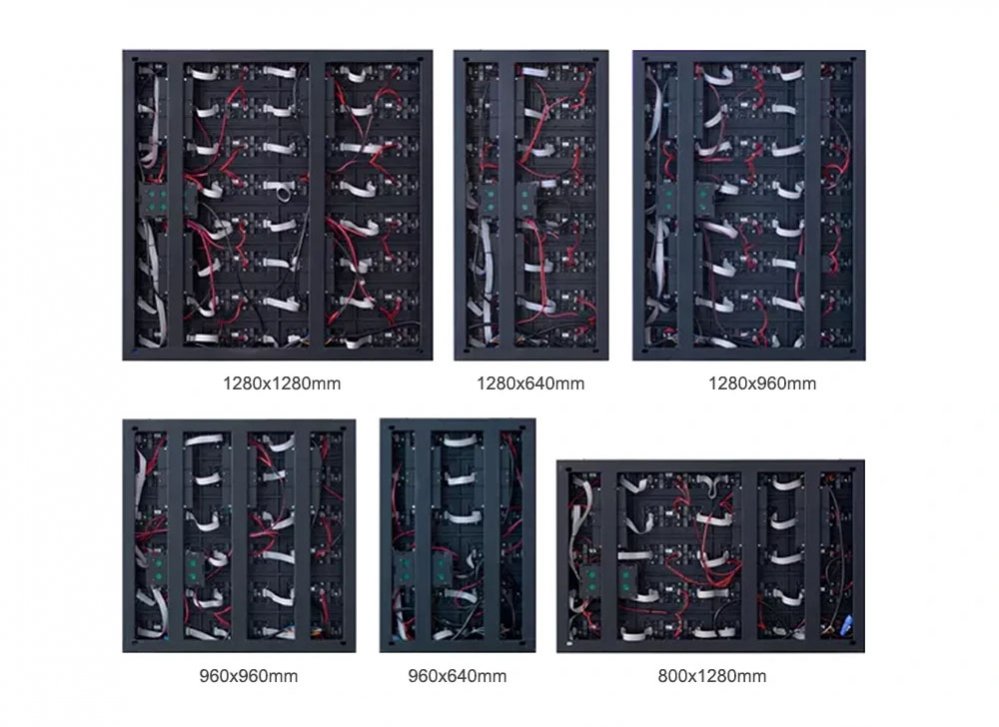

Cabinet Size Customized Flexible cabinet size:960*640/960*960/800*1280/1280*500/1280*960/1280*1280mm

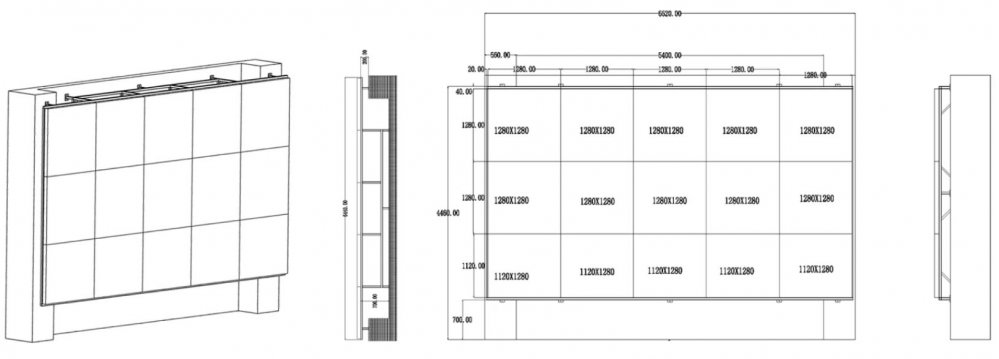

Fix Video Wall This iron cabinet is the most common indoor led display installation method

Various Installation in High Ef Thinner & lighter high-precision cabinets feature interlocks to facilitate fast installation like direct wall mounting,hanging & stacking Arc installation.
