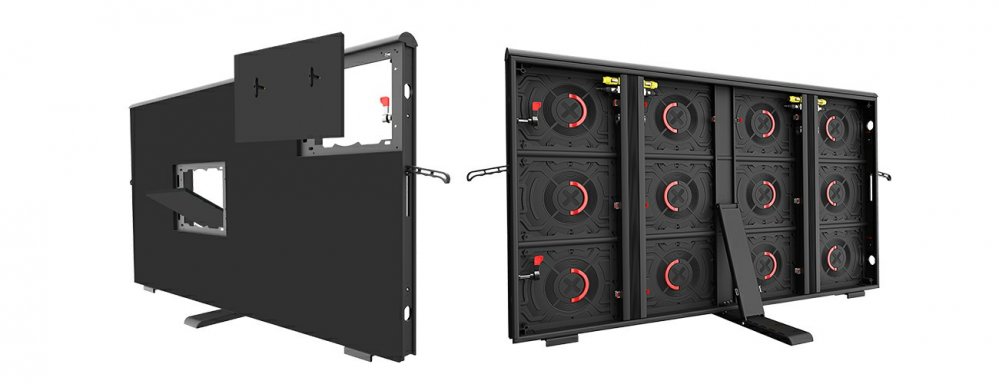

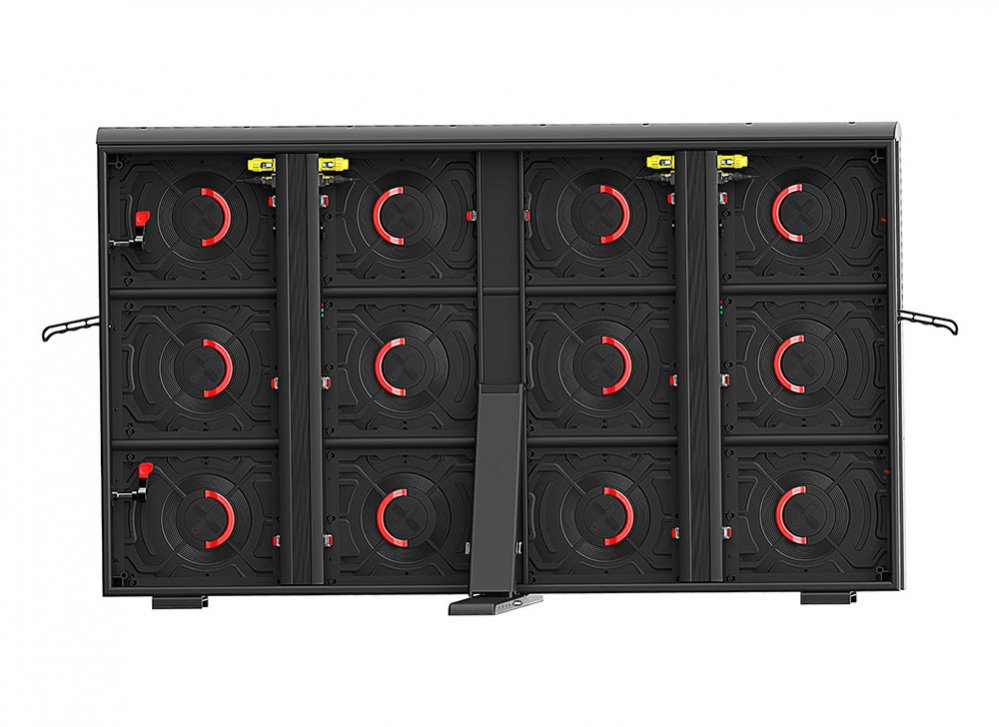

RS Diamond series Sport led display

Super wide viewing angle, aluminum cabinet for the sport screen. Front & back service module design, multi angle adjust for the supporter. It is avaible for the P6.25 ,P8.33 P10, Cabinet size 1600mm x 900mm

Product Description

Golden Ratio Design as 16:9

Cabinet size is designed as 16:9, easy to achieve full HD and 4K, no compression.

Thin and Light Design

Only with 6.5kg per cabinet, and 62mm thickness, more convenient to be installed and shipped.

Aluminum material case

Innovation aluminum material case design, seamless splitting, and better heat dissipation capability.

Full Front Access Design

Full front access and front and back installations design, no limitation for the installing surrounding.

Cable Free Design for Cabinet Connection

Adopting touch links for power and signal,cable free among the cabinet connection, more efficient and elegant.

Dual Signal & Power Supply Standby

Ensure 7*24 hours uninterrupted working,unnecessary to face the emergence.

High Gray Level and Refresh Frequency

Adopting low brightness with high gray level and refresh frequency, making the display effect more bright and vivid, meeting various high-end application sites.

Parameters

No.		E0.9	E1.2	E1.5	E1.9
Module	Pixel Pitch(mm)	0.95	1.27	1.58	1.9
	Module Size(mm)	305x171.5	305x171.5	305x171.5	305x171.5
	Module Resolution(point)	320x180	240x135	192x108	160x90
	LED Type	SMD0606	SMD1010	SMD1010	SMD1515
Cabinet	Cabinet Size(mm)	610x343x62	610x343x62	610x343x62	610x343x62
	Cabinet Display Resolution(point)	640x360	480x270	384x216	320x180
	Material	Die-casting Al	Die-casting Al	Die-casting Al	Die-casting Al
	Cabinet Weight（Kg）	≤6.5	≤6.5	≤6.5	≤6.5
Display	Pixel Density	1100779 pix/㎡	622722 pix/㎡	398556 pix/㎡	276765 pix/㎡
	Brightness	≥800cd/㎡	≥800cd/㎡	≥800cd/㎡	≥800cd/㎡
	Refresh Rate(Hz)	1920-3840	1920-3840	1920-3840	1920-3840
	Color Depth	14bit	14bit	14bit	14bit
	Avg. Power Consumption	260 W/㎡	250 W/㎡	220 W/㎡	250 W/㎡
	Max. Power Consumption	620 W/㎡	600 W/㎡	550 W/㎡	600 W/㎡
	Viewing Angle	H:160°V:120°	H:160°V:120°	H:160°V:120°	H:160°V:120°
	IP Grade	IP30	IP30	IP30	IP30
	Service Access	Full front access	Full front access	Full front access	Full front access
	Operating Temp/Humidity	-20℃～50℃, 10～90%RH
	Storage Temp/Humidity	-40℃～60℃, 10～90%RH
	Input Signal	DVI HDMI SDI VGA
	Certification	CCC CE ETL

Features

Advantages

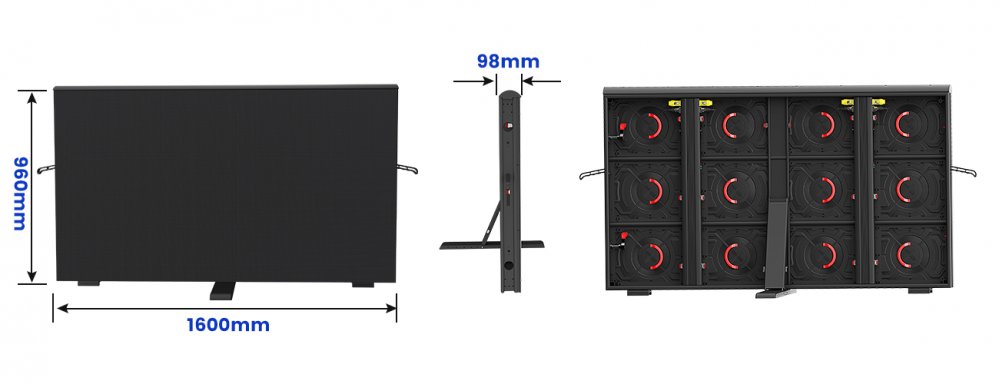

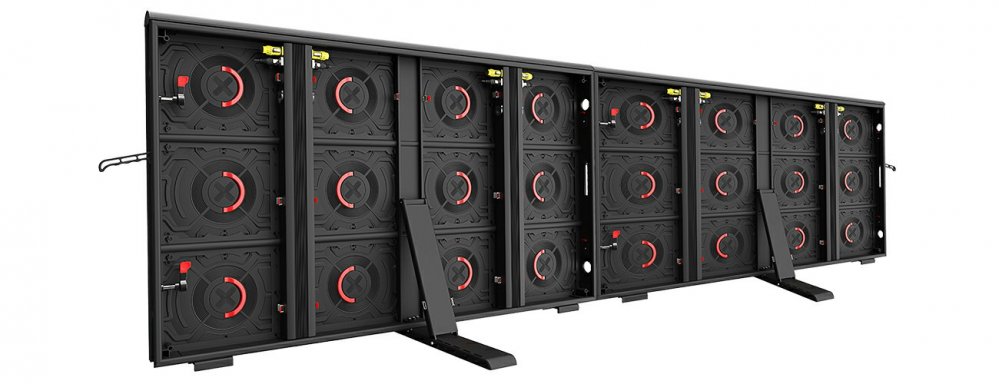

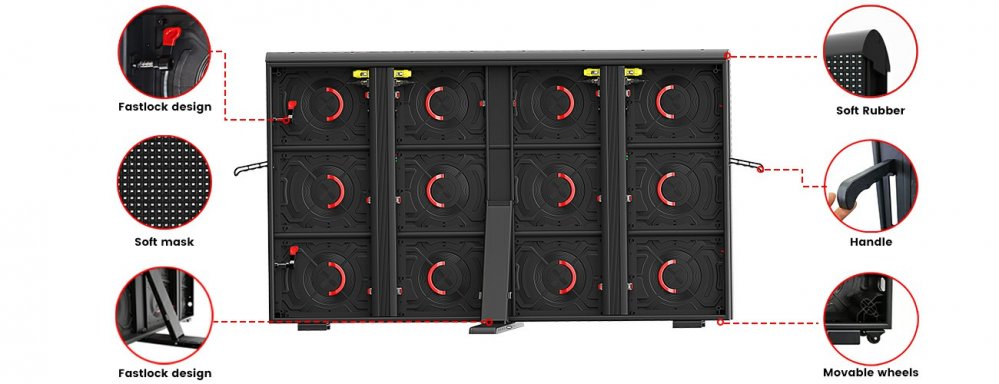

Excellent Cabinet Design Full die-casting Aluminum module and cabinet frame not only accelerate heat dissipation;also own light weight 45KG;Cabinet size 960x1600x96mm

Customized design is available

160°Super wide viewing angle Create a thrilling experience like being on the field

IP65 Waterproof lt's for outdoor application with high waterproof level and dust-proof level.It can resist some bad weather during outdoor events.
